TECHNOLOGY
There’s a massive amount of work that goes into making simulators. Here’s the detail.

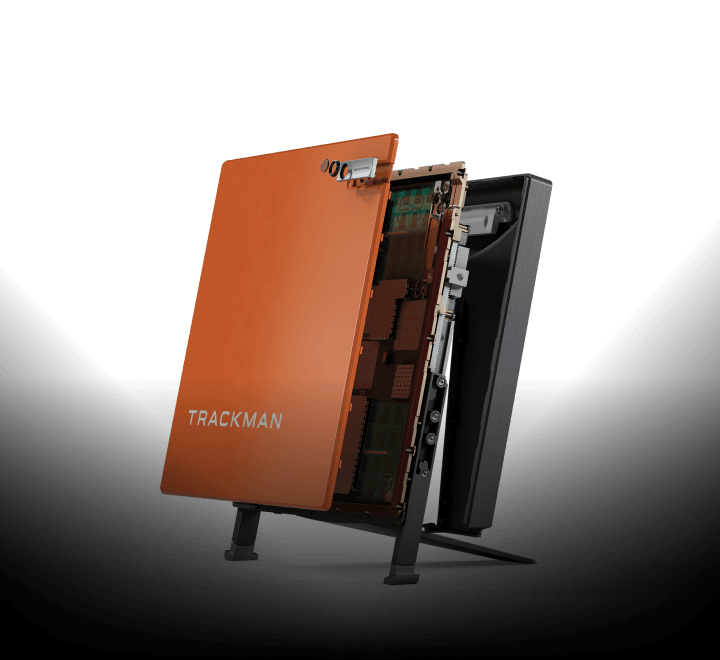

TRACKMAN 4
Radar Technology
Dual Radar
Radar Sensors
Optically Enhanced Radar tracking
Two radar systems synchronized in time and space:
- A short range, high-resolution system, focused on putting, club and impact data
- A long range, high accuracy ball tracking system
Simulator
Virtual Golf 2
Putting
Performance Putting
Built-In Camera
Radar Syncronized
High Dynamic Range
HD 720p
Full HD 1080p
+ more
Indoor Length Setup
TrackMan to Net
Min. 15'5” | 4.7 m*
Processor
Intel Baytrail
Quad Core 1.9 GHz
WiFi
Dual Band
2.4 + 5 GHz
Interfaces
Micro-USB and Ethernet
Dimensions
300 x 300 x 45 mm
11.8 x 11.8 x 1.8 in
Weight
6.2 lbs / 2.8 kg
Levelling
Auto
Battery
Lithium-ion 10.400 mAh
4+ hours of playtime
Alignment
On-Screen target alignment
Club Data
Club Speed, Attack Angle, Dynamic Loft, Club Path, Face Angle, Face to Path, Spin Loft, Swing Plane, Swing Direction, Low Point, Impact Height, Impact Offset, Dynamic Lie
Ball Data
Ball Speed, Smash Factor, Launch Angle, Spin Rate, Launch Direction, Spin Axis, Height, Curve, Landing Angle, Carry, Side, Total, Side Total
Putting Data
Club Speed, Backswing Time, Stroke Length, Forward Swing Time, Tempo, Dynamic Lie, Launch Direction, Ball Speed, Skid Distance, Roll Speed, Speed Drop, Roll %, Effective Stimp, Side, Break, Distance, Attack Angle, Club Path, Face Angle, Face to Path, Entry Speed Distance, Elevation, Slope %, Slope % Rise, Stimp (Flat)
SIMULATOR
Recommended Room Dimensions
Width: 15'0 | 4.6 m
Height: 10'0 | 3.1 m
Depth: 18'0 | 5.5 m
Min. Required Room Dimensions*
(For a single dexterity and off-center bay)
Width: 10'0” | 3.0 m
Height: 9'10” | 3.0 m
Depth: 16'5” | 4.9 m*
Distance from TrackMan 4 to ball
Minimum 1.8 m / 6’
Recommended 2.1 m / 7’
Maximum 3 m / 10’
Distance from ball to screen
Recommendation is >3 m / >10’
Room depth wall to wall
Minimum 4.9 m / 16.5’
Recommended: >5.8 m / >19’
Impact location lights (OERT)
Min. 700-800 Lux on tee area and
min. 200 Lux ambient light
Projector
Recommended: Min. >5,000 Lumen
Recommended: 16:9 or 16:10 aspect
Touch Screen
Recommended: >22”
Audio
Recommended: Surround sound for the full experience in Virtual Golf
* For optimal room depth recommendations for your particular need, please contact us for details
COMPUTER
Desktop PC specs for TrackMan Performance Studio and Virtual Golf
Minimum
Windows 10 (64-bit)
8 GB RAM*
i5 Processor
Nvidia 1070 8GB GDDR
512GB SSD
Recommended
Windows 10 (64-bit)
16 GB RAM
i7 2.5Ghz Processor
Nvidia RTX with 8 GB
1TB SSD
Laptop specs for TrackMan Performance Studio and Virtual Golf
Minimum
i7 2.5Ghz Processor
Nvidia RTX 2060 with 6 GB
Note
Virtual Golf works only with TM4 and requires an up-to-date software license.
TPS does not support Intel Iris Xe graphics card or AMD processors.
* Increased specification on RAM and Hard Drive may be needed depending on number of external cameras.
